Our N series Planetary gearbox & geared motor is a complete range of modular design gearboxes, and combined high performance with low cost and compact size.business. Our drive and automation solutions based on Totally Integrated Automation (TIA) and Totally Integrated Power (TIP) are employed in all kinds of industry. In the manufacturing and the process industry. In industrial as well as in functional buildings.

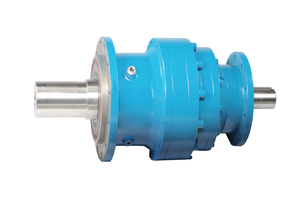

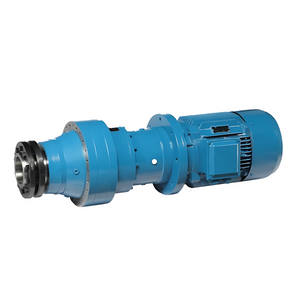

N series planetary gearmotor : Comprehensive product range
Select from:
21 gear unit sizes
6 transmission stages
5 output shafts:
Hollow shaft for shrink disk;
Hollow shaft with splines in accordance with DIN 5480;
Cylindrical shaft end with parallel key or
Cylindrical shaft end with splines in accordance with DIN 5480
Flanged shaft
Optional shaft seal with taconite
Benefits :
Advantages of BAFFERO PLANETARY GEARBOX
Well-proven FLENDER quality with an attractive price/performance ratio
Short delivery times
High availability worldwide
High-endurance gearing and large planetary bearings for a long service life
Energy-efficient thanks to high levels of efficiency
Easy to combine with Siemens geared motors
Smooth running thanks to high transverse contact ratio in the gear teeth
Technical support all over the world
Overview about the main components :
Housing
The housing parts are constructed from high-quality casting materials and are of an optimized shape.
Gear teeth
The sun pinion and planet gears have straight teeth, are case hardened, and ground. Internal gears are highly tempered and pounded.
The gear teeth are designed to be high-endurance for the specified nominal torques in accordance with ISO 6336.
Bearings
Only suitably dimensioned roller bearings are used for the gear wheels and shafts.
Drive end
The shaft is designed as a cylindrical shaft end with a parallel key in accordance with DIN 6885-1 and suitable, for example, for the attachment of couplings.
Non-drive-end
Hollow shafts with shrink disk or hollow shafts with splines in accordance with DIN 5480 are available, as well as cylindrical shaft ends with parallel keys or with splines according toDIN 5480.
A flanged shaft is also available.
Installation options
For mounting on the driven machine, an output-side flange is available. With shaft-mounted gear units, a torque arm must be used. For torque arm, Installation is also possible using a gear housing base. For gear housing base
Directions of rotation
The direction of rotation is determined by the front view of the output shaft (shaft end face).
Seals
The input shaft and output shaft are sealed as standard with radial shaft seals. For special purposes, refillable labyrinth seals (taconite) are available.
Noise :
The gear units are noise-optimized and can be evaluated in accordance with VDI 2159 with reference to the power rating.
The associated values are listed in Operating Instructions 9300.
Service & Stock
BAFFERO guarantees ultra-short delivery times all over the world through its Stock & Service Centers and extensive sales network.
• Quality warranty offered since 1993
Technical data :
Gear ratio range : i = 1: 3.0~10,000
Nominal torque range : T2 = 1500~420,000N.m
Mounting Types : Foot mounted / Flange mounted
Output shaft options : Solid / Hollow with shrink disc / Spline solid or Hollow shaft
Accessory : Torque arm , IEC Flange
Motor options : IEC / NEMA standard AC motor , hydraulic motor .
Application :
Sewage treatment ,Steel industry ,Textile Industry ,Conveying machinery ,Papermaking Machinery, Hoisting Machinery ,Chemical industry ,Cooling Tower ,Sucrose production ,Beet sugar production ,Ropeway cable car , Cement industry ,Dredgers ,Metal Working mills ....
